Product Description

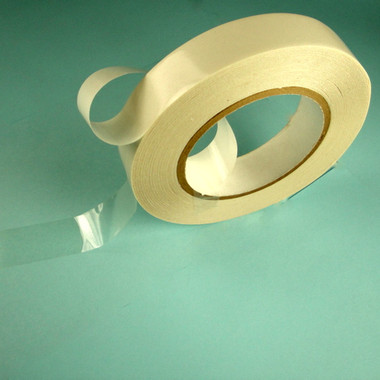

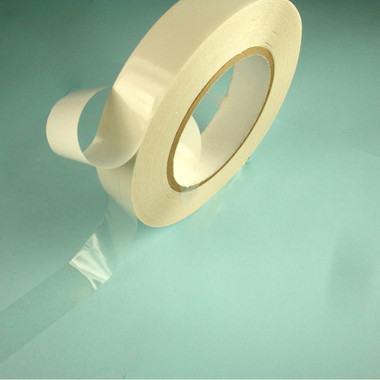

A 0.5 mil clear polyester film coated on both sides with an aggressive synthetic hot melt rubber adhesive (1.5 mils per side). This 3.5 mil tape is provided on a 2.7 mil white siliconized paper release liner and wound on a 3” neutral core.
FEATURES/APPLICATIONS:
- Excellent quick-stick; ideal for laminating difficult substrates & various webs, such as foams and foils (i.e. for fabrication of mouse pads).
- Superior moisture resistance in humid conditions once bonded.
- Splicing of various materials such as papers, plastics, films, foils, etc.
- Mounting nameplates, keyboard assembly, etc.
PHYSICAL PROPERTIES:
|
Backing |
0.5 mils (0.012mm) Clear Polyester |
|
Adhesive (exposed & liner side combined) |
3.1 mils (0.078mm) Synthetic Hot Melt Rubber |
|
Total Thickness (exclusive of liner) |
3.5 mils (0.090mm) |
|
Liner |
2.7 mils (0.070mm) White Siliconized Paper |
|
Adhesion to Steel |
64 oz/inch |
|
Tensile Strength |
18 lbs/inch |
|
Elongation |
130% |
|
Application Temperature |
50°F to 104°F (Optimal Range 64°F to 104°F) |
|
Temperature Resistance |
-4°F to 140°F (Optimal Range 14°F to 140°F) |
SURFACE PREPARATION:
The surface should be clean, dry, and free from grease, oil, powder, dust, release agents, etc.
STORAGE:
Tape should be stored out of direct sunlight in a cool, dry area at 65°F to 70°F and 50% RH.
Alternative to: Adchem #3175M; Venture #512; Scapa #S-662.
NOTE: The physical properties listed above are typical test results obtained from a series of laboratory tests and should not be used for the purpose of writing specifications. Before using this product, user shall determine the suitability of the product for his/her use; and user assumes all risks and liabilities in connection therewith. All test procedures used are in accordance with ASTM and PSTC methods.
Specifications
- Weight: 30 lb
