Product Description

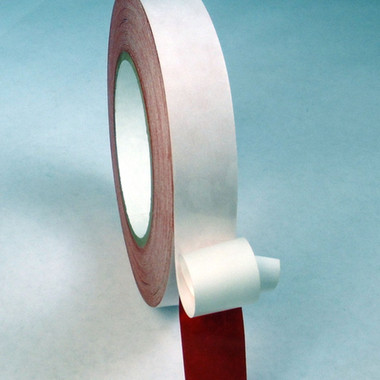

A 3.5 mil double sided bright RED splicing tape, specifically designed for highly visible splices. Composed of a 0.5 mil RED Mylar film, coated on each side with an aggressive, clear acrylic pressure sensitive adhesive. Wound on a white Kraft paper liner.
FEATURES/BENEFITS:
- High tack, high peel acrylic pressure sensitive adhesive with unusually high shear strength for product this aggressive.
- Exhibits excellent low temperature performance.
APPLICATIONS:
- High performance red splicing tape used in the manufacture of paper, plastics, foils and other continuous web processes when a visual splice is critical.
- Designed for use on a variety of high or low surface energy plastics, mounting and laminating system for dissimilar metals, foams, foils and nameplates.
- Excellent conformability for most irregular surfaces.
PHYSICAL PROPERTIES:
|
Backing |
0.5 mils (13 micron) Red Mylar/PET Film |
|
Adhesive |
Clear Solvent Acrylic Adhesive |
|
Total Thickness |
3.5 mils |
|
Liner |
3.2 mils White Kraft Paper Liner |
|
Peel Adhesion |
95 oz/inch |
|
Tensile Strength |
7.5 lbs/inch width |
|
Elongation |
100% at break |
|
Application Temperature |
50°F |
|
Temperature Resistance |
-40°F to 225°F (175°F for continuous load) |
Alternative to Venture #515R; 3M #9420 & #9737R; Berry Plastics #756; Int’l Tape #713R; Scapa #5234R; Newbond #TF2404.
NOTE: The physical properties listed above are typical test results obtained from a series of laboratory tests and should not be used for the purpose of writing specifications. Before using this product, user shall determine the suitability of the product for his/her use; and user assumes all risks and liabilities in connection therewith. All test procedures used are in accordance with ASTM and PSTC methods.
Specifications
- Weight: 30 lb
