Product Description

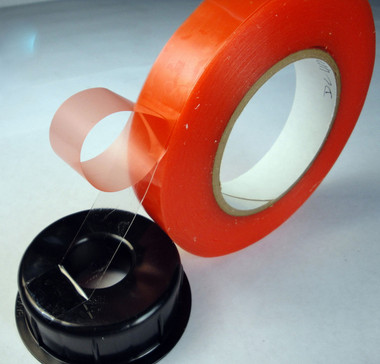

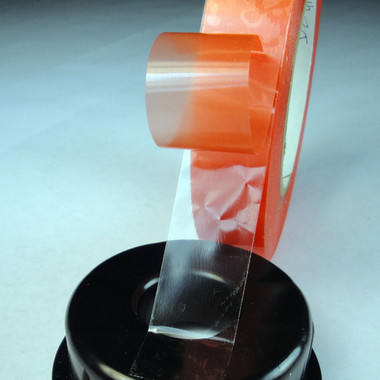

Clear polyester film coated on both sides with a high performance, modified acrylic adhesive. The tape is wound with a siliconized RED polypropylene liner on a 3” neutral core.
FEATURES/BENEFITS:
- Liner is dimensionally stable, ideal for precision die-cutting applications.
- Exhibits high tack and shear strength.
- Aggressive adhesive system bonds well to most materials, even to difficult, low energy surfaces (LSE) like foams, PE and PP films.
- Excellent temperature, UV, aging, water vapor, and solvent/chemical resistance.
- Good plasticizer resistance.
APPLICATIONS:
- Die-cut applications where precise size retention is critical.
- Interior or exterior bonding of dissimilar materials where high shear performance is required.
- Sign making, fixing decorative moldings, print finishing and stereo mounting.
- Bonding rubber, plastic, metal and wood substrates.
- Mounting displays, signage, nameplates and decorative trim on appliances and furniture.
PHYSICAL PROPERTIES:
|
Backing |
0.5 mil (0.012mm) Clear Polyester Film |
|||
|
Adhesive |
Modified Solvent Acrylic Adhesive |
|||
|
Total Thickness (excludes liner) |
7.5 mil (0.190mm) |
|||
|
Liner |
3.1 mil (0.080mm) Red Siliconized Polypropylene Film |
|||
|
Adhesion to SST (by dwell time) |
88 oz/in (1 min) |
106 oz/in (20 min) |
117 oz/in (24 hr) |
|
|
Shear Resistance |
> 400 hours @ 23˚C (73˚F) |
> 6 hours @ 70˚C (158˚F) |
||
|
Application Temperature |
59ºF |
|||
|
Temperature Resistance |
-40°F to 320°F (356°F short term) |
|||
STORAGE: Tape should be stored in a cool, dry area at 60°F to 70°F and 50% relative humidity.
Alternative to Tesa #4965, Lohman #373.
Specifications
- Weight: 24 lb
