Product Description

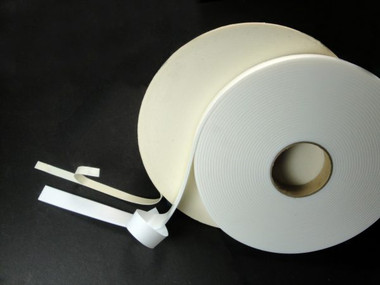

Closed cell, cross-linked polyethylene foam tapes coated on both sides with a high performance adhesive. Wound on a 3” neutral paper core with a 50# white paper release liner. Tapes are permanent and designed to have exceptional durability in demanding environments. Suitable for applications where moisture resistance is required. Can be easily die-cut. Excellent conformability and compressibility.
FEATURES & BENEFITS:
- Used for mounting and joining nameplates, signs, small die cast parts, mirrors, maps, etc.
- Used for sound and vibration dampening in business machines, industrial equipment, copy machines, electronic component packaging and glass panel mounts, seals, gaskets, etc.
|
ACRYLIC ADHESIVE |
RUBBER ADHESIVE |
|
Recommended for outdoor applications due to its higher temperature, aging, UV, weather, chemical, and plasticizer resistance. High bond strength on most materials. |
Excellent quick-stick sealing with high shear and peel properties for efficient operation and secure bonding, even to low surface energy materials or other difficult to bond surfaces. Low density 1/8” foam provides excellent conformance to textured and rough surfaces. |
|
PHYSICAL PROPERTIES |
15030 |
15031 |
15061 |
15062 |
15124 |
15125 |
||
|
Foam Type |
Cross-linked Polyethylene |
|||||||
|
Thickness, Density |
1/32” (31mil), 5 lbs |
1/16” (62mil), 4 lbs |
1/8” (124mil), 2 lbs |
|||||
|
Adhesive |
Acrylic |
Rubber |
Acrylic |
Rubber |
Acrylic |
Rubber |
||
|
Adhesive Thickness |
2.0mil per side |
2.2mil per side |
2.0mil per side |
2.2mil per side |
2.0mil per side |
|||
|
Peel Adhesion to SST (1 min) |
> 69 oz/in |
> 73 oz/in |
> 55 oz/in |
> 59 oz/in |
> 27 oz/in |
> 30 oz/in |
||
|
Peel Adhesion to SST (24 hrs) |
+ 82 oz/in* |
+ 91 oz/in* |
+ 73 oz/in* |
+ 82 oz/in* |
+ 46 oz/in* |
+ 50 oz/in* |
||
|
Available Color(s) |
Black or White |
White |
||||||
|
Shear Adhesion |
> 168 hours @ RT (1 kg/1 inch2) |
|||||||
|
Release Liner |
2.8 mil, 50# White Siliconized Paper |
|||||||
|
APPLICATION GUIDE |
ACRYLIC ADHESIVE |
RUBBER ADHESIVE |
|
Adhesion to Metals |
Excellent |
Excellent |
|
Adhesion to High Surface Energy |
Very good |
Excellent |
|
Adhesion to Low Surface Energy |
Good |
Very good |
|
UV Resistance |
Excellent |
Very good |
|
Chemical Resistance |
Very good |
Good |
|
Moisture Resistance |
Excellent |
Excellent |
|
Plasticizer Resistance |
Excellent |
Good |
|
Oil Resistance |
Excellent |
Very good |
|
Acid Resistance (mild) |
Very good |
Good |
|
Service Temperature |
-22°F to 212°F |
-22°F to 176°F |
|
Temperature Resistance |
|
|
|
Short term (minutes, hours) |
266°F |
194°F |
|
Long term (days, weeks) |
212°F |
176°F |
STORAGE:
Store in a clean, dry environment out of direct sunlight. Recommended storage conditions are 50% RH and 65ºF to 85ºF. Ensure that all surfaces are clean, dry, and free from excessive dust prior to installation.
Alternative to Venture #632 & #732; Scapa #SA432V & #SA5432V; 3M #4482 & #4462 & #4492; Int¶__l Tape #332, #1328, #132 & #432; IPG #8132; Press-on P-3200R/A.
Note: The physical properties listed above are typical test results obtained from a series of laboratory tests and should not be used for the purpose of writing specifications. Before using this product, user shall determine the suitability of the product for his/her use; and user assumes all risks and liabilities in connection therewith. All test procedures used are in accordance with ASTM and PSTC methods.
Specifications
- Weight: 1 lb
