Product Description

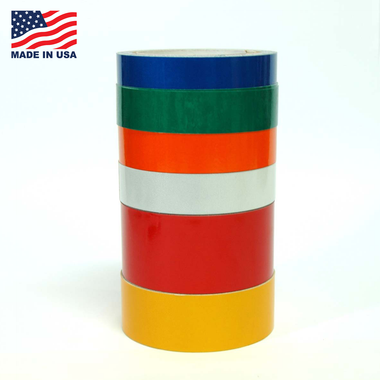

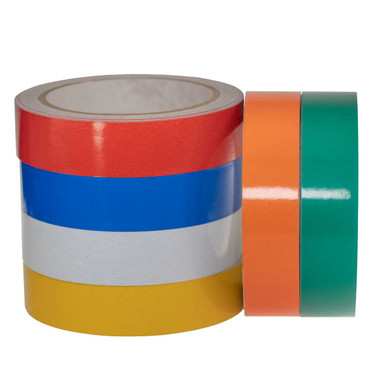

Engineering Grade Retro Reflective Tape designed for permanent and temporary traffic signage.
Constructed with high-quality, durable (7 years), enclosed lens retroreflective material and pressure sensitive acrylic adhesive, this film will perform with uniform visual reflectivity at all sign face orientations. Product may be screen printed, thermal transfer printed, thermal die-cut, flat bed sign-cut, drum roller sign-cut, or steel rule sign-cut.
APPLICATIONS:
- Permanent and temporary outdoor signage.
- Work zone devices.
- Non-critical signs where retroreflection that exceeds ASTM D4956 Type I is necessary.
PHYSICAL PROPERTIES:
|
Film |
Enclosed Lens Glass Beaded Retroreflective Urethane |
|
Adhesive |
Acrylic |
|
Total Thickness (excludes liner) |
6.0 mils (0.15mm) |
|
Liner |
6.8 mils (0.173 mm) White Polyethylene Coated Paper |
|
90° Peel Adhesion (24 hrs) |
43 oz/inch |
|
Minimum Application Temperature |
65°F |
|
Temperature Range |
-10°F to 150°F |
|
Durability |
7 years |
|
Specification |
ASTM D4956 Type I, EN-12899 RA1 |
|
Available Colors (6) |
Silver (white), yellow, red, orange, blue & green |
RETROREFLECTIVITY: ASTM D49562 Type I minimum coefficients of retroreflection (RA)
|
Observation Angle |
Entrance Angle |
White |
Yellow |
Red |
Orange |
Blue |
Green |
|
0.2° |
-4° |
70 |
50 |
14 |
25 |
4 |
9 |
|
30° |
30 |
22 |
6 |
7 |
1.7 |
3.5 |
|
|
0.5° |
-4° |
30 |
25 |
7.5 |
13 |
2 |
4.5 |
|
30° |
15 |
13 |
3 |
4 |
0.8 |
2.2 |
|
|
RA = Candelas per lux per square meter (cd/lx/m2) or candelas per foot-candle per square foot (cd/fc/ft2) |
|||||||
Specifications
- Weight: 6 lb
