Product Description

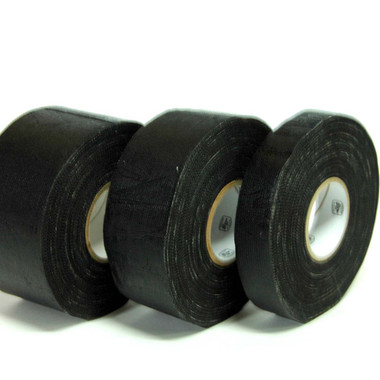

A 13.3 mil friction tape with a black cotton cloth backing coated with a non-corrosive rubber-resin adhesive. The tape is wound on a 1.5” (38.1mm) neutral core. Rolls are individually cello-wrapped.
FEATURES/BENEFITS:
- Hand-tearable, flexible and conformable.
- Holds tightly on rough and irregular surfaces.
- Adhesive system will not dry out.
- Excellent resistance to humidity, abrasions and galvanic corrosion.
APPLICATIONS:
- Used for general electrical maintenance and industrial repairs jobs.
- Insulate and protect industrial harnesses and electrical wires from physical damage caused by friction.
- To protect hanging electric crane wires, pneumatic hoses, protection on lift trucks.
- For over wrapping low voltage splices and insulating cables.
PHYSICAL PROPERTIES:
|
Backing |
Black Cotton Cloth |
|
Adhesive |
Rubber Resin |
|
Total Thickness (excludes liner) |
13.3 mils (0.33 mm) |
|
Tensile Strength |
46.3 lbs/inch |
|
Elongation |
4% |
|
Dielectric Strength |
1 kV |
|
Insulation Class |
176°F |
NOTE: Unless otherwise noted, the physical properties listed above are typical test results obtained from a series of laboratory tests and should not be used for the purpose of writing specifications. Before using this product, user shall determine the suitability of the product for their use; and user assumes all risks and liabilities in connection therewith. All test procedures are in accordance with standard (ASTM, PSTC, AFERA, JIS) test methods.
Specifications
- Weight: 32 lb
