Product Description

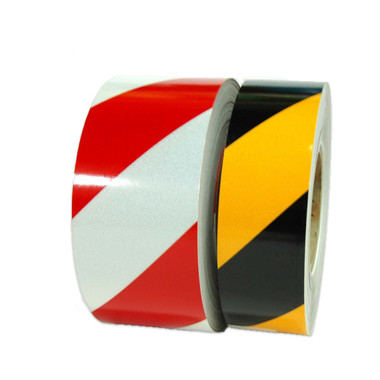

Striped Reflective Tape (77068) series are flexible, glass-beaded polyester striped reflective tapes with acrylic adhesive. The glass beaded retroreflective sheeting is designed to provide bright, vivid colors (in illuminated areas) with light reflective properties in darkness. The aggressive, pressure sensitive acrylic adhesive bonds well to most substrates. Tape is wound Kraft paper release liner on a 3” neutral paper core.
APPLICATIONS:
- Helps signify safety hazards on traffic signs, barricades, fences, gate arms, poles, building etc.
- Used in construction and work zone areas to improve safety and nighttime visibility.
|
PHYSICAL PROPERTIES: |
Striped Reflective Tape (77068) |
|
Service Life |
5-7 Years |
|
Backing / Adhesive |
Polyester with Acrylic Adhesive |
|
Total Thickness |
6.8 mils (0.175mm) |
|
Liner |
6.8mils Polycoated White Kraft |
|
Peel Adhesion |
70 oz/inch |
|
Tensile Strength |
11 lbs/inch |
|
Elongation |
24% |
|
Application Temperature |
≥ 32°F |
|
Temperature Resistance |
-70°F to 160°F |
|
Federal Specifications |
LS-300 (Reflectivity 1, Class 1); FP-85 (Type II) |
|
Colors (213/16” wide diagonal stripes) |
Black/Yellow or Red/White |
NOTE: The physical properties listed above are typical test results obtained from a series of laboratory tests and should not be used for the purpose of writing specifications. Before using this product, user shall determine the suitability of the product for his/her use; and user assumes all risks and liabilities in connection therewith. All test procedures used are in accordance with ASTM and PSTC methods.
Specifications
- Weight: 2 lb
