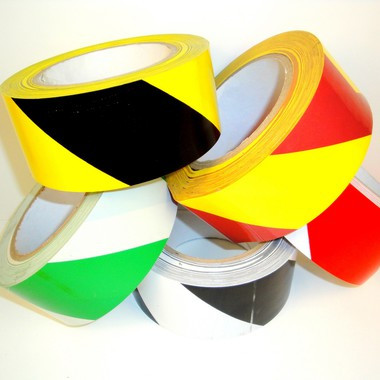

Product Description
6 mil, soft, polyvinyl chloride (SPVC) striped safety tapes with synthetic rubber based adhesive and wound on a 3” neutral core. These durable, abrasion resistant, highly conformable vinyl tapes are used for lane marking, striping, warning and safety coding of hazardous areas.
FEATURES/BENEFITS:
- Complies with OSHA requirements per paragraph 1910.144 of the Federal Register.
- Provides a vapor and moisture barrier.
- Resists oil, grease, and solvents.
APPLICATIONS:
- Used for industrial identification of hazardous areas, marking of fire equipment/exits and first aid points to comply with OSHA requirements.
- For color coding, striping, warning, bundling, and lane/area marking.
PHYSICAL PROPERTIES:
|
Backing |
Soft PVC (Polyvinyl Chloride) |
|
|||
|
Adhesive |
Synthetic Rubber Resin |
|
|||
|
Total Thickness |
5.9 mil (0.15mm) |
|
|||
|
Peel Adhesion |
13.7 oz/inch |
|
|||
|
Tensile Strength |
15.2 lbs/inch |
|
|||
|
Elongation |
210% |
|
|||
|
Temperature Resistance |
14°F to 176°F |
||||
|
OSHA Striped Colors (5) |
Black / Yellow |
= |
Physical Hazard / Caution |
|
|
|
|
Red / White |
= |
Fire Equipment / First Aid |
|
|
|
|
Black / White |
= |
Traffic / Housekeeping |
|
|
|
|
Green / White |
= |
Decorative Identification |
|
|
|
|
Magenta / Yellow* |
= |
Radiation Hazard |
|
|
Note: The physical properties listed above are typical test results obtained from a series of laboratory tests and should not be used for the purpose of writing specifications. Before using this product, user shall determine the suitability of the product for his/her use; and user assumes all risks and liabilities in connection therewith. All test procedures used are in accordance with ASTM and PSTC methods.
Specifications
- Weight: 13 lb
